Wave set-up
Definition of Wave set-up:
Elevation of the mean water level at the shoreline due to wave breaking in the surf zone.
This is the common definition for Wave set-up, other definitions can be discussed in the article
|
Contents
[hide]Notes
Wave transformation in shallow water generates changes in the mean water level, called set-up for an upward change and set-down for a downward change. The changes in mean sea level are related to the so-called radiation stress. The radiation stress is defined as the flow of momentum due to wave orbital motions. Gradients in the radiation stress induce an effective momentum transfer from wave motion to steady motion that takes place when the wave amplitude changes along the direction of propagation (see appendix). Wave set-down [math]\eta_d[/math] occurs in the shoaling zone where the wave amplitude increases; wave wet-up [math]\eta_u[/math] occurs in the surf zone where the wave amplitude decreases. Wave breaking is the major process in the surf zone responsible for wave energy dissipation and wave amplitude decay (see Breaker index). Analytical expressions of the wave set-down at the breakpoint and the wave set-up at the shoreline can be derived for a monochromatic wave, see Shallow-water wave theory#Wave set-down and set-up:
[math]\eta_u \approx -\frac{\gamma}{16} H_b , \qquad \eta_u \approx \eta_d +\frac{3 \gamma}{8} H_b \approx \frac{5 \gamma}{16} H_b, \qquad (1)[/math]
Symbols: [math]H=[/math] wave height, [math]h=[/math] water depth, [math]\gamma = H_b/h_b =[/math] breaker index (values in the range 0.5-1.2), [math]H_b=[/math] wave height at the breakpoint, [math]h_b=[/math] depth at the breakpoint (see Fig. 1).
Eq.(1) is based on the assumption of fully saturated depth-limited wave breaking, [math]\; H(x)/h(x)=\gamma \;[/math] throughout the surf zone.
The strong simplifying assumptions that underly Eq. (1) limit its practical usefulness. Besides monochromatic waves and applicability of shallow-water wave theory, other assumptions are:
- a constant shoreface seabed slope [math]\tan\beta \approx \beta [/math], i.e. depth [math]h(x) = \beta \, x[/math];
- shallow water, [math]2kh_b \lt 1[/math] ([math]k=2 \pi / L[/math] is the wave number);
- wave skewness and asymmetry can be ignored;
- roller energy of breaking waves can be ignored;
- no momentum loss through dissipation at the seabed.
Numerical modeling shows that neglecting momentum dissipation at the seabed (mainly momentum dissipation related to the undertow current) and neglecting dissipation of roller energy yield an underprediction of the wave set-up[1].
In practice, empirical formulas derived from field and laboratory measurements are often used for determining the wave set-up. Many different formulas can be found in the literature[2]. Most of these formulas relate the wave set-up to the offshore significant wave height [math]H_s[/math], the deep-water wave length [math]L = g T^2 \ /2 \pi[/math] and the average surf zone bed slope [math]\beta[/math].
Several field measurements [3][4][5] report values compatible with Eq. (1):
[math]\eta_u \approx 0.16 H_s . \qquad (2)[/math]
A popular formula for the wave set-up is[6][7][8]
[math]\eta_u= C \, H_s \, \xi = C \, \beta \, \sqrt{H_s\, L}, \qquad (3)[/math]
where [math]\xi= \beta / \sqrt{H_s/L}[/math] is the surf similarity parameter . The constant [math]C[/math] can take values in the range 0.15 – 0.4.
Other empirical formulas differ from Eq. (3) especially regarding the dependence on the surf zone slope [math]\beta[/math], either by no dependence on [math]\beta[/math][9] or by an inverse relationship with [math]\beta[/math]. [4][10]
The great diversity of empirical formulas and associated values for the wave set-up illustrates the limitations inherent to simple parameterizations of the shoreface. The shoreface bathymetry is highly variable and differs greatly among coasts, even among nearby locations. Complex bathymetries are ubiquitous due to the presence of nearshore sandbars and other rhythmic shoreline features. Accurate estimates of the wave set-up require in-situ observations or detailed numerical models.
Related articles
Appendix: Wave set-up balance equations
This appendix reproduces the equations from which the wave set-up [math]\eta_u[/math] can be determined. We consider wave set-up driven by a surface wave [math]\eta_w (x,t)[/math] incident normal to the shore of a longshore uniform coast. The incident wave from the far field is sinusoidal monochromatic,
[math]\eta_w (x,t) = \dfrac{H}{2} \cos(\omega t – k x)[/math].

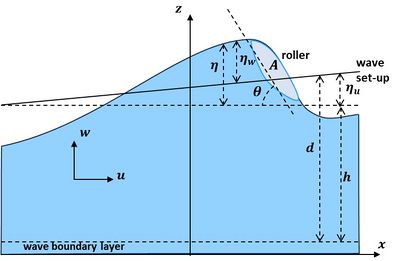

Symbols are defined in Fig. 2,
[math]x=[/math] shore-perpendicular onshore coordinate, [math]z=[/math] vertical upward coordinate, [math]H=[/math] wave height, [math]h=[/math] still water depth, [math]g=[/math] gravitational acceleration, [math]c \approx \sqrt{gh}=[/math] wave celerity, [math]\omega=2 \pi /T = k c =[/math] wave radial frequency, [math]k= 2 \pi /L=[/math] wave number, [math]\big\langle … \big\rangle \, =[/math]wave-averaged value (averaged over one or more wave cycles, encompassing the turbulence time scale), [math]\; u(x,z,t), \, w(x,z,t) \,=[/math] horizontal, vertical velocity; [math]\; u_0 = \lt u\gt , \, w_0=\lt w\gt [/math], [math]\; u_w, \, w_w \,=[/math] horizontal, vertical wave orbital velocities, [math]\; u', \, w' \, =[/math] turbulent velocity fluctuations.
The velocities [math]u, \, w[/math] and surface elevation [math]\eta[/math] are decomposed as
[math]u = u_0 + u_w + u' \, , \; w = w_0 + w_w + w' \, , \; \eta = \eta_u + \eta_w \, , \; \eta_u = \langle \eta \rangle . \qquad (1)[/math]
The momentum balance equation in the propagation direction is
[math]\dfrac{\partial u}{\partial t} + \dfrac{\partial u^2}{\partial x} + \dfrac{\partial w u}{\partial z} + \dfrac{1}{\rho}\dfrac{\partial p}{\partial x} = 0 \, , \qquad (2)[/math]
where [math]p=p(x,z,t)=[/math] pressure. Integration over the depth and averaging over one or more wave cycles gives
[math]\Big\langle \int_{-h}^{\eta} \dfrac{\partial u}{\partial t} dz \Big\rangle + \Big\langle \int_{-h}^{\eta} \dfrac{\partial u^2}{\partial x} dz \Big\rangle + \Big\langle \int_{-h}^{\eta} \dfrac{\partial uw}{\partial z} dz \Big\rangle + \dfrac{1}{\rho} \Big\langle \int_{-h}^{\eta} \dfrac{\partial p}{\partial x} dz \Big\rangle = \Big\langle \dfrac{\partial}{\partial x} \int_{-h}^{\eta} u^2 dz \Big\rangle + \dfrac{1}{\rho} \Big\langle \dfrac{\partial}{\partial x} \int_{-h}^{\eta} p dz \Big\rangle - \dfrac{1}{\rho } \Big\langle p_b \dfrac{dh}{dx} \Big\rangle+ \dfrac{1}{\rho } \Big\langle \tau_b - \tau_s \Big\rangle = 0 \, , \qquad (3)[/math]
where [math]\tau_b= - \rho \big\langle u'_b w'_b \big\rangle \, , \; \tau_s = - \rho \big\langle u'_s w'_s \big\rangle [/math] and subscripts [math]_b, \, _s[/math] denote values at the seabed [math]z=-h[/math] and the surface [math]z=\eta[/math] respectively. For the permutation of integration and derivation in Eq. (3) we have used the surface and bottom boundary conditions which state that the surface and the seabed are streamlines: [math]\quad W_s=\dfrac{\partial \eta}{\partial t} + U_s \dfrac{\partial \eta}{\partial x} \; , \; W_b = - U_b\dfrac{dh}{dx} \, , [/math] where [math]U = u_0+u_w \, , \, W = w_0+w_w[/math]. The shear stress at the surface [math]\tau_s[/math] is mainly due to the roller generated by wave breaking and shear stress at the seabed [math]\tau_b[/math] is mainly due to turbulent momentum dissipation of the undertow.
The pressure at the seabed [math]\; p_b=\rho g (h+\eta) \; [/math], and thus [math]\quad \dfrac{1}{\rho} \Big\langle p_b \dfrac{dh}{dx} \Big\rangle = \dfrac{1}{2} g \dfrac{d}{dx} (h+\eta_u)^2 – g (h+\eta_u)\dfrac{d \eta_u}{dx} \, . [/math]
Substitution in Eq. (3) gives the wave set-up balance (see also Shallow-water wave theory#Radiation Stress (Momentum Flux))
[math] \rho g d \dfrac{d \eta_u}{dx} = - \dfrac{d}{dx} \Big(\int_{-h}^{trough} \rho u_0^2 dz \Big) - \dfrac{d S_{xx}}{dx} + \langle \tau_s \rangle - \langle \tau_b \rangle \, , \quad S_{xx} = \Big\langle \int_{-h}^{\eta} ( \rho u_w^2 + p) dz \Big\rangle - \dfrac{1}{2} \rho g (h+\eta_u)^2 \, , \qquad (4)[/math]
where [math]trough[/math] indicates the surface level below the wave trough.
Effect of the surface roller

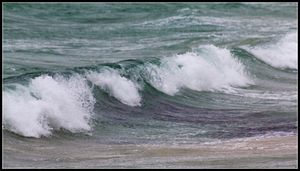

We assume that the shear stress at the surface [math]\tau_s[/math] is mainly related to the energy dissipation of the surface roller. The surface roller is a recirculating mixture of water and air generated at the breaking wave crest (Fig. 3). The breaking wave crest and associated roller are surfing as a bore towards the beach with celerity [math]c \approx \sqrt{gh}[/math]. The water volume [math]A[/math] of the roller (water volume per longshore meter) is estimated as being close to the square of the bore height ([math]A \sim H^2[/math])[11][12]. The roller induces an additional onshore mass transport given by [math]\rho A c[/math]. The energy [math]E_r[/math] of the roller is estimated according to the relation
[math]E_r = \frac{1}{2} \dfrac{\rho A c^2}{L} = \dfrac{\rho A c}{2T} \, , \qquad (5) [/math]
which is the roller kinetic energy per wavelength [math]L=cT[/math] ([math]T=[/math] wave period). The shear stress [math]\tau_s[/math] follows from considering the dynamic balance with the gravity force acting on the roller along the slope [math]\theta[/math] (~10-15°) of the bore front (Fig. 2) [11],
[math]\langle \tau_s \rangle = \dfrac{\rho g A}{L} \sin \theta = \dfrac{2 g \sin \theta }{c^2} E_r \approx \dfrac{2 \sin \theta }{h} E_r \, . \qquad (6) [/math]
The energy [math]D_{br}[/math] dissipated by a breaking wave is first transferred to the roller and then dissipated by turbulent shearing to the underlying water body[13],
[math]a_r \dfrac{d}{dx} (c E_w) = - \dfrac{d}{dx} (2cE_r) - c \, \langle \tau_s \rangle \, , \quad \dfrac{d}{dx} (c E_w) \approx - \rho g \dfrac{H^3}{4 h T} \, , \qquad (7) [/math]
where [math]E_w = \rho g \langle \eta_w^2 \rangle[/math] is the wave energy and [math]a_r[/math] the fraction of the wave energy that is dissipated to the roller (estimated at about 0.6-0.7)[14]. The roller energy [math]E_r[/math] can be estimated by solving this differential equation with the condition [math]E_r=0[/math] seaward of the surf zone[15][13].
Effect of the undertow
The bed shear stress [math]\tau_b[/math] is mainly determined by the momentum dissipation of the mean current [math]u_0[/math] ('undertow') driven by the radiation stress. Assuming an eddy viscosity description of the momentum dissipation in the wave boundary layer with eddy viscosity coefficient [math]K[/math] we have
[math]\dfrac{1}{\rho} \langle \tau_b \rangle = K \dfrac{\partial u_0}{\partial z} |_{z=-h} \, . \qquad (8) [/math]
The radiation stress [math]S_{xx}[/math] mainly results from breaker-induced wave dissipation and can be approximated as (see Breaker index)
[math]\dfrac{d}{dx} S_{xx} \approx - \dfrac{3}{2} \dfrac{dE_w}{dx} \approx \dfrac{3c}{8T} \Big( \dfrac{H}{h} \Big)^3 \, .[/math]
The undertow current [math]u_0[/math] can be determined from the balance equations shown in the appendix of the article Undertow.
The wave set-up Eq. (4) thus becomes
[math]\rho g d \dfrac{d\eta_u }{dx} + \dfrac{d}{dx} \Big(\int_{-h}^{trough} \rho u_0^2 dz \Big) = \dfrac{3c}{8T} \Big( \dfrac{H}{h} \Big)^3 + \dfrac{2 \sin \theta }{h} E_r - \langle \tau_b \rangle \, . \qquad (9) [/math]
