Instrument characteristics of point-integrating suspended load samplers
This article is a summary of section 5.2 of the Manual Sediment Transport Measurements in Rivers, Estuaries and Coastal Seas[1]. This article provides insight in some characteristics of point-integrating suspended load samplers. Methods to sample suspended load, which are not discussed here are depth-integrating sampling methods (USD-49 depth-integrating sampler and Collapsible-Bag depth-integrating sampler).
Contents
Characteristics

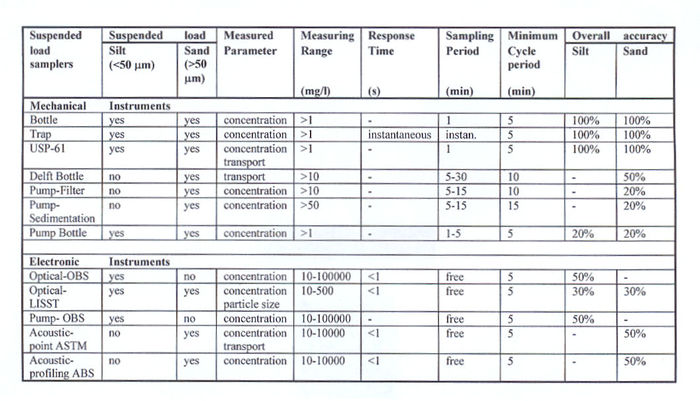

The most important characteristics of the point-integrating suspended load samplers are summarized in Figure 1. Below, some of the characteristics are discussed.
Sampling period
The sampling period is the time period during which a sample is collected. For the bottle-type and trap-type samplers the sampling period is equal to the filling period of the bottle or trap. The sampling period of the Delft Bottle is restricted by the size of the sediment catch which should be small compared with the size of the sedimentation chamber of the instrument. The sampling period of the pump-filter sampler is restricted by the filter characteristics. A small 50 um-filter may be blocked rather easily, especially in a silty environment. The sampling period of the optical and acoustical samplers is free. For time-averaging additional equipment should be used allowing a digital reading.
Minimum cycle period
The minimum cycle period is the minimum time period between two successive measurements at adjacent points in a vertical. In case of a free sampling period a minimum sampling period of about 5 minutes is used to obtain the minimum cycle period, as given in Figure 1. The cycle period can be used to evaluate the time period needed to cover a full concentration profile measurement. In case of tidal flow conditions this latter period should be small in relation to the tidal period.
Overall accuracy
The overall accuracy is an estimate of the overall error of a single measurement due to (systematic and random) measuring errors and stochastic (fluctuation) errors related to the physical process. The latter errors are introduced by the stochastic fluctuations of the physical parameters to be measured. For example, single bottle-measurements may have an error of about 100%. This error can be reduced by using a larger sampling period or by collecting more samples. The overall accuracy of the samplers with a free sampling period, as presented in Figure 1, is based on a relatively long sampling period (say 5 minutes). The accuracy of the optical and acoustical samplers is largely dependent on the number and accuracy of the calibration samples.
