Introduction

Fluorescence is a process in which a photon is absorbed by an atom or molecule and re-emitted at a lower energy (and longer wavelength). The emission of the lower-energy photon generally occurs on a time scale of nano- or pico-seconds, and the change in wavelength is called the Stokes shift (Lakowicz 2006)[1]. The quantum yield of fluorescence is defined as the ratio of the numbers of long-wavelength photons emitted to short-wavelength photons absorbed, and this yield can be strongly modified (quenched) by the chemical environment in which the process occurs. Most submersible fluorometers, including the Fast Repetition Rate and Pulse Amplitude Modulated instruments used to study photosynthesis, emit flashes of excitation light that are micro- or milli- seconds in duration (Roettgers 2007)[2]. These flashes are considerably longer than the lifetime of an individual fluorescence decay event, and therefore measure ‘steady state fluorescence’ in the terminology of the photochemist. Fluorescence lifetimes can be measured in situ using phase-shift techniques, and these have been successfully used to study chlorophyll a in vivo (Ciencia) and to measure dissolved oxygen concentrations through fluorescence quenching in optodes (Aanderaa).

Sensor design

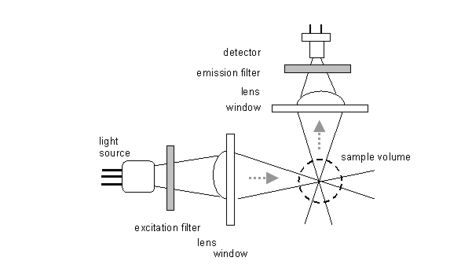

Fig. 1: Schematic diagram of a traditional submersible fluorosensor.

Until recently, a submersible fluorometer consisted of 5 main optical components: a light source, a lens system to convey the exciting light to the sample volume, a second lens system to gather the emitted fluorescence, one or more optical filters to separate the excitation and emission wavelengths, and a photodetector. This arrangement is shown schematically in Figure 1. The first submersible instruments used xenon flash lamps and photomultiplier detectors, but these have been replaced by light-emitting diodes and silicon detectors for most applications with considerable savings in instrument size and power consumption. The main optical problem encountered is the tendency of ambient light, or excitation scattered back from the sample volume, to interfere with the measurement of the relatively weak fluorescence signal. Modern compact fluorometers use a wide range of proprietary optical configurations, including coaxial arrangements of the excitation and collection optics or light pipes rather than lenses.

Applications

Measurements of fluorescence have been used for many years in marine science to measure concentrations of chlorophyll a and related phaeopigments, but the calibration of these measurements is rendered problematic by natural variations in the quantum yield in living phytoplankton cells (Strass 1990)[3]. Fluorometers are also widely used in tracer experiments to study processes of diffusion and mixing, since fluorescent dyes such as rhodamine and fluoresceine are detectable at very low concentrations in natural waters. The recent availability of efficient solid state sources in a wide range of wavebands, including the ultra-violet (UV), has led to the introduction of fluorescence sensors for other photopigments (phycoerythrin and phycocyanin) as well as coloured dissolved organic matter (CDOM) and hydrocarbons. It has also opened the way for new developments such as the use of multiple excitation wavelengths for discriminating between phytoplankton taxa (Paresys et al 2005)[4]. Excitation and emission wavebands for substances commonly measured using their fluorescence properties are listed in Table 1.

Table 1: Approximate excitation and emission wavebands of the main substances>
Substance Excitation (nm) Emission (nm)
Chlorophyll a 400-450 650-750
Phycoerythrins 545-565 565-585
Phycocyanins 615-650 640-660
CDOM (typical) 360-390 450-470
Hydrocarbons 250-350 300-450
Fluorescein 410-510 500-600
Rhodamine B 490-590 510-690


See also

Internal Links

References

  1. ↑ Lakowicz, J. R. 2006. Principles of Fluorescence Spectroscopy. Springer, 954 pp.
  2. ↑ Roettgers, R. 2007. Comparison of different variable chlorophyll a fluorescence techniques to determine photosynthetic parameters of natural phytoplankton. Deep-Sea Research, Part I-Oceanographic Research Papers 54: 437-451.
  3. ↑ Strass, V. 1990. On the calibration of large-scale fluorometric chlorophyll measurements from towed undulating vehicles. Deep-Sea Research, Part A-Oceanographic Research Papers 37: 525-540.
  4. ↑ Paresys, G., Rigart, C., Rousseau, B., Wong, A. W. M., Fan, F., Barbier, J. P., Lavaud, J. 2005. Quantitative and qualitative evaluation of phytoplankton communities by trichromatic chlorophyll fluorescence excitation with special focus on cyanobacteria. Water Research 39: 911-921.
